AC3 to MP2 encoding in HeadAC3he

HeadAC3he combines a lot of well-known utilities like azid, lame and ssrc together for direct AC3 -> MP2/MP3/WAV/Ogg Vorbis transcoding. In order to boost speed there's a pseudo-one pass encoding mode where the AC3 will be decoded to a temporary WAV file which will then be encoded to the destination format. During the AC3 decoding the signal peaks are recorded so the AC3 will not have to be parsed first for peaks, then being decoded again applying the correct gain to not get any overflows. This is especially effective on machines that have a fast I/O subsystem (RAID;). Then there's another unique feature: Dolby Surround 2 coding. This special mode codes the output in a way that Dolby Pro Logic II decoders can separate the rear channels, while remaining completely compatible to regular Dolby Pro Logic decoders. But let's get started now.

Start up HeadAC3he.

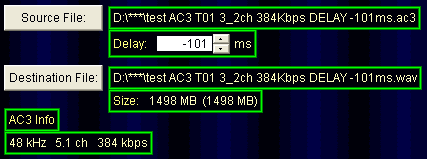

Press the Source file button and load your AC3 file. As you can see I demuxed this AC3 with DVD2AVI so it shows me the delay I have to apply to the audio (the DELAY -101ms part). HeadAC3he will automatically adjust the delay if you demux in DVD2AVI. Below the Destination file you can also see the predicted filesize. As I haven't setup everything properly yet the default is set to WAV output so the file would be rather large (1498MB).

The AC3 info finally will show you the number of channels and the bitrate of the AC3 file.

Then let's configure the output:

Select MP2 from the dropdown list and leave the 2-pass mode to the default (float) for best quality. Note that while the default float mode is faster than regular dumb 2 pass mode it will write a temporary file to your harddisk that can be even bigger than decoding the AC3 to wav would be (because it's a float file, 32bit floats take up more space than 16bit ints). If this is not acceptable to you you can go for the slower dumb 2 pass mode and you won't get a temp file. Hybrid is a mix between the two.. the precision is a bit less accurate but it's the fastest of all 3 modes.

Now press the options button to do some more setup work:

Leave the downmix type to Surround 2 Press the 2ch button here and everything will be properly set up.

Then press the options button again to configure the MP2 output:

Select the CBR mode, then set a bitrate. 224kbit/s is the default for both SVCD and VCD and can be lowered for SVCD whereas it has to be 224 for VCD.

If you want to downsample for whatever reason, or to boost the volume of the audio track you can use these two options:

Just check Resample to and leave it at 44.1KHz if you need to downsample (my suggestion is: don't ever do it, there's no sense in paying respect to legacy hardware), and activating the boost option will boost the overall volume of your audio track.

Once you're done press the Start button to start encoding.
